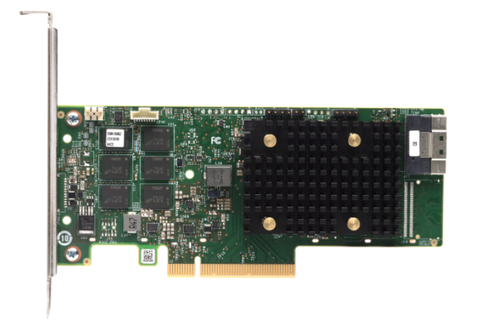

Lenovo RAID 940-16I

Supported storage drive interfaces: SAS, Serial ATA. Host interface: PCI Express x4. RAID levels: 0, 1, 5, 10, 50, 60. 12 Gbit/s. SSD support. Number of devices supported: 16. Abstract. The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.. This product guide provides essential presales information to understand the ThinkSystem RAID 940-8i, 16i and 32i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.. Introduction. The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) server adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.. The ThinkSystem RAID 940-16i is shown in the following figure.. Did you know?. The RAID 940 Series adapters all have a PCIe 4.0 host interface which doubles the bandwidth between the server and the adapter, compared to the previous generation RAID 930 adapters. This improves overall performance of the storage subsystem by supporting up to 3 million IOPS (JBOD mode) and up to 3 million IOPS in RAID (random reads).. RAID on Chip-based controllers such as the RAID 940 adapters have a dedicated processor that offloads all RAID functions from the server's CPU. With hardware acceleration for RAID 5 and 6 operations plus up to 8 GB dedicated memory for caching, the 940-8i, 16i and 32i offer the ultimate performance for ThinkSystem servers.. Part number information. The following table provides the ordering part numbers for the adapters.. The table includes feature codes for the RAID 940 adapters to be ordered with the Tri-Mode feature enabled. Tri-Mode enables the support of SAS, SATA and NVMe drives to be connected to the adapter, as described in the Features section.. Ports & interfaces. PCI Express slots version. 4.0. Host interface. PCI Express x4. Supported storage drive interfaces. SAS, Serial ATA. Performance. Number of devices supported. 16. SSD support. Yes. Form factor. Low-Profile MD2 PCIe AIC. Data transfer rate. 12 Gbit/s. RAID Level Migration. Yes. RAID levels. 0, 1, 5, 10, 50, 60. Logistics data. Harmonized System (HS) code. 84733080. leaflet
