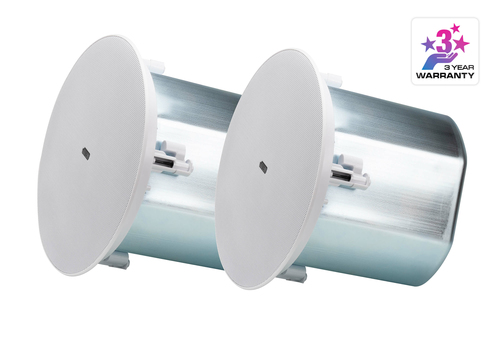

ATEN AS108 White Wired 80 W

Coaxial design with premium components:. 8 high output driver with rubber surround and heavy-duty voice coil. 20 mm dome tweeter. 65 - 20 kHz bandwidth with wide coverage for consistent, full-range coverage of the space while reducing the amount of the speakers needed. Switchable for use as either an 8 Ω low-impedance speaker or as part of a 70V / 100V distributed loudspeaker system. UL94-V0 compliance for life safety applications. Paintable magnetic grille for blending into any room decor. Ease of installation guaranteed with the magnetic grille, dog leg mounting system and cutout template. The AS108 comes in a pair of 8 coaxial 2-way ceiling loudspeakers that deliver decent sonic performance. Each speaker ships with a 8 woofer, 20 mm dome tweeter, and 80W RMS, 160W peak (8Ω) power handling capability. Excellent and consistent sound quality is ensured by taking advantages of its 65 - 20 kHz bandwidth and wide coverage, allowing less speakers used to cover the listening area to lower the cost of the system installed.. The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8 Ω to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of canceling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-plated steel backcan, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cutout template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design.. AS108 is ideal for residence and enterprise-grade audio applications, such as auditoriums, houses of worship, sports venues, and any small or mid-sized public address systems that require a clear and intelligible sound solution without compromise on life safety.. Loudspeakers. Tweeter diameter. 2 cm. Tweeter. Yes. Speaker placement. Ceiling-mountable. Audio. Total Harmonic Distortion (THD). 5%. Sensitivity. 90 dB. Frequency range. 65 - 20000 Hz. RMS rated power. 80 W. Performance. Certification. CE, WEEE, RoHs. Housing material. Plastic. Recommended usage. Universal. Product colour. White. Ports & interfaces. Connectivity technology. Wired. Power. Transformer taps. 10,20,40,80 W. Weight & dimensions. Weight. 5.8 kg. Height. 248 mm. Depth. 309 mm. Width. 309 mm. Packaging data. Package weight. 18 kg. Package height. 259 mm. Package depth. 785 mm. Package width. 397 mm. Packaging content. Quantity per pack. 2 pc(s). Operational conditions. Operating temperature (T-T). 0 - 40 °C. Operating relative humidity (H-H). 0 - 80%. Storage temperature (T-T). -20 - 60 °C. Logistics data. Master (outer) case gross weight. 18 kg. Master (outer) case net weight. 11.4 kg. Master (outer) case height. 259 mm. Master (outer) case length. 785 mm. Master (outer) case width. 397 mm. Harmonized System (HS) code. 85182100. Other features. Country of origin. China. Quick Start Guide. leaflet. manual pdf
