ATEN VS1828KIT-AT-G video splitter HDMI 2x HDMI
ATEN VS1828KIT-AT-G, HDMI, 2x HDMI, 4096 x 2160 pixels, Black, Metal, 4K Ultra HD
Compare prices
At a Glance
Key highlights and verified hardware specifications
Andote Analysis
Our score evaluates this product's core technical specifications (performance, display, battery, camera, and price value) directly against competing models in the same price tier, giving you an objective measure of relative value and real-world capability. User ratings are not included in this calculation and the score is not influenced by user ratings.
Price History
1 verified store
Selling your phone?
Top alternatives to consider
View all alternatives >These recommendations include other storage sizes, colors, and closely matched editions of this exact product so you can easily compare pricing across available options.
Products you might be interested in
View more in presentation conference equipment >Trending items in the same category to help you discover popular alternatives other shoppers are considering.
Ask the community
About ATEN VS1828KIT-AT-G video splitter HDMI 2x HDMI

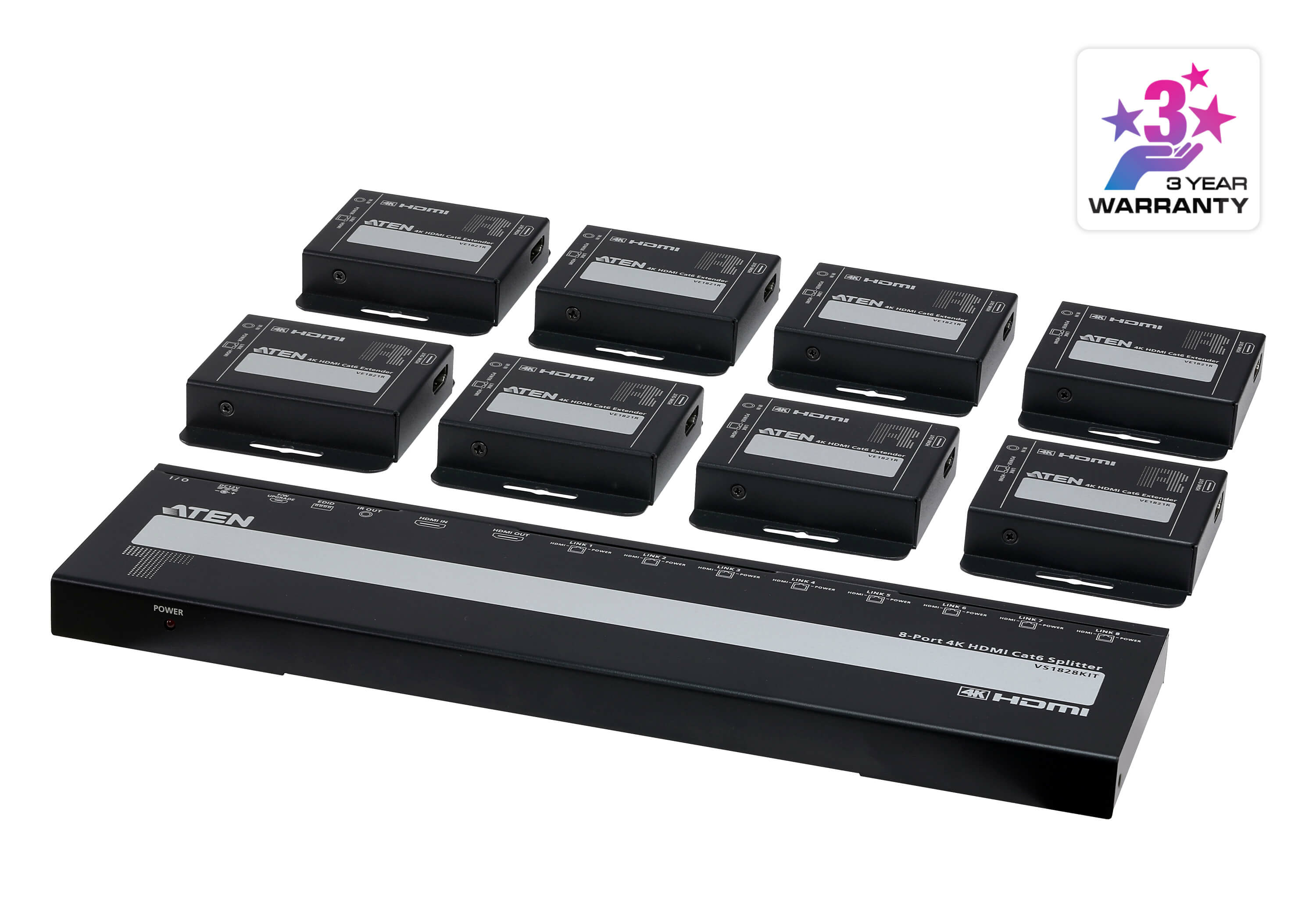

Video port type: HDMI Video ports quantity: 3 Black. DC-in jack. 4096 x 2160 pixels. Maximum operating distance: 3 m. Maximum refresh rate: 60 Hz Bandwidth: 340 MHz. 9 pc(s). The VS1828KIT is a kit that includes 1 splitter and 8 receivers, distributing an HDMI source at up to 4K @ 30 Hz (4:4:4) to 8 displays up to 40m away via a single Cat 6 cable. The system also supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus & DTS-HD Master Audio. Only one power adapter for the splitter is needed as a result of the receivers being powered by the splitter thanks to the Power over Cable (PoC) functionality, which also helps avoid cluttered cable installation. An HDMI local output port is built on the splitter for content monitoring or cascading purposes. Moreover, the splitter contains a user-adjustable EDID switch, enabling users to configure the output video resolutions and audio capabilities for seamless integration across the system. The receiver’s ultra lightweight, palm-sized enclosure ensures flexible installation including mounting and placement in tight spaces.. The kit comes with 1 IR blaster cable for the splitter and 8 IR receiver cables for receivers, allowing users to remotely control the source device from the receiver side. With plug-and-play operation, no software is required, enabling easy, immediate installation. The VS1828KIT delivers excellent AV transmission quality and installation flexibility within different installation scenarios, from meeting facilities, retail settings, showrooms, entertainment systems, and more.. Ports & interfaces. DC-in jack. Yes. Audio ports quantity. 3. Ethernet LAN (RJ-45) ports. 10. Video out. 2x HDMI. Video port type. HDMI. Video ports quantity. 3. Features. HDCP. Yes. Data transfer rate. 10.2 Gbit/s. Extended display identification data (EDID). Yes. HDCP version. 1.4. Bandwidth. 340 MHz. Maximum refresh rate. 60 Hz. Maximum operating distance. 3 m. 3D. Yes. HD type. 4K Ultra HD. Maximum resolution. 4096 x 2160 pixels. Housing material. Metal. Product colour. Black. Power. Power consumption (typical). 19.2 W. Packaging data. Package weight. 2.3 kg. Package height. 143 mm. Package depth. 236 mm. Package width. 360 mm. Quantity per pack. 9 pc(s). Packaging content. Cables included. IR. Operational conditions. Operating relative humidity (H-H). 20 - 90%. Storage temperature (T-T). -20 - 60 °C. Operating temperature (T-T). 0 - 40 °C. Logistics data. Country of origin. China. Master (outer) case gross weight. 7.5 kg. Master (outer) case height. 287 mm. Master (outer) case length. 477 mm. Master (outer) case width. 402 mm. Harmonized System (HS) code. 85437090. Master (outer) case net weight. 6.15 kg. QSG. leaflet. manual pdf
