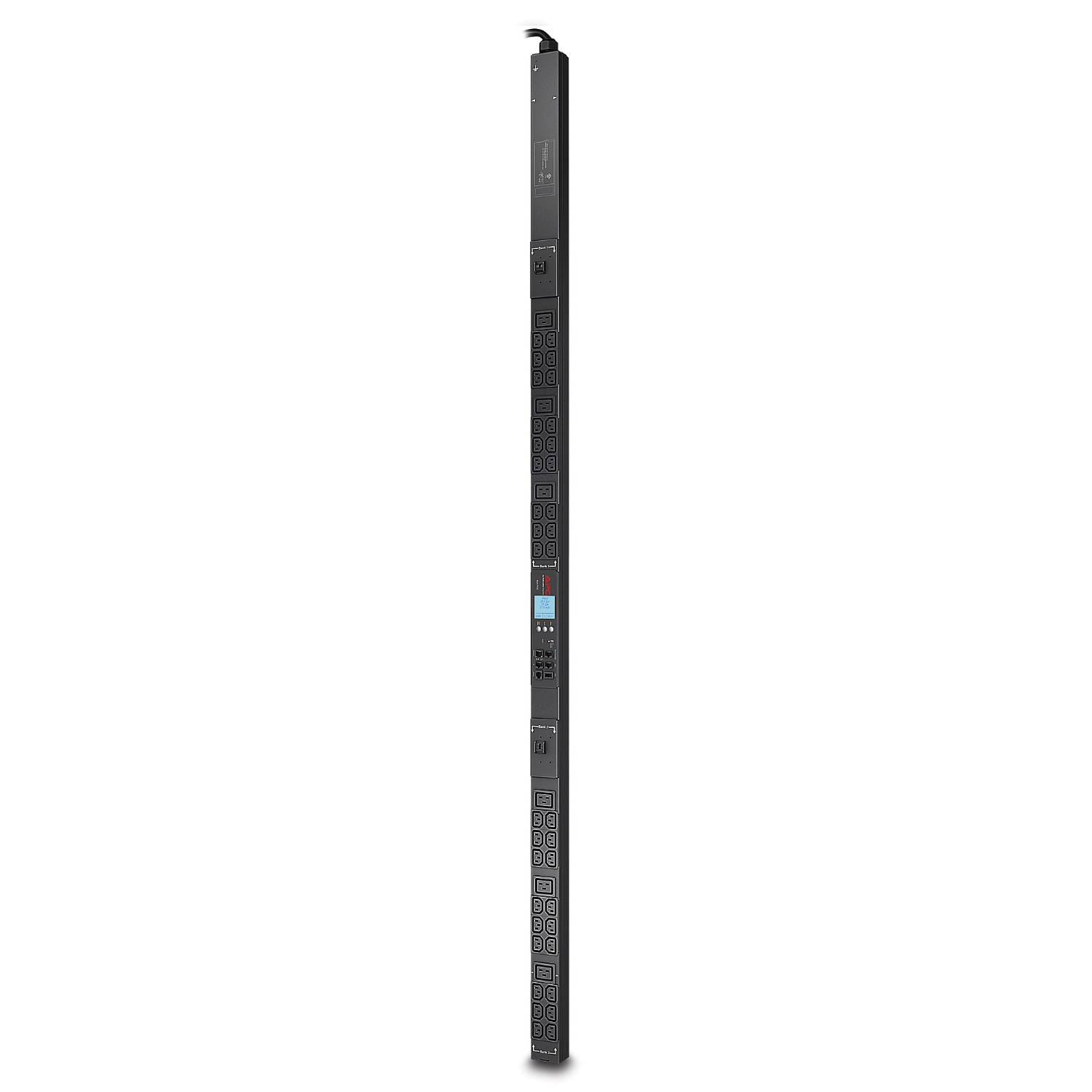

APC NetShelter Rack PDU, Metered, 0U, 5.0kW 200V and 208V 30A, (36) C13 and (6) C19 outlets

Ideal for colocation, large data centers or distributed IT sites. Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh). Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms. Stay on top by defining alarm thresholds in order to avoid overloaded circuits. 1-Year Secure Network Management Card subscription included. Interactive LCD display. Active power measurements (volts, amps, kW, kWh). Embedded log memory. 9.84’ power cord, 2-year APC warranty. Zero U toolless installation. The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8841 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable. Design. PDU types. Basic. Type. Single-phase. Rack capacity. 0U. Mounting. Vertical. Product colour. Black. Ports & interfaces. AC outlets quantity. 42 AC outlet(s). Power plug. NEMA L6-30P. AC outlet types. NEMA L6-30P. Input connection type. NEMA L6-30P. Output connections. 36x IEC 320 C13. 6x IEC 320 C19. Features. Cable length. 2.9 m. Power. Nominal input voltage. 200; 208 V. AC input frequency. 50-60 Hz. Maximum current. 30 A. Output voltage. 200 V; 208 V. Load capacity. 4992 VA. Maximum input current per phase. 30 A. Maximum total current draw per phase. 30 A. Certificates. Waste Electrical and Electronic Equipment (WEEE) compliance. Yes. Compliance certificates. RoHS, REACH, WEEE. Certification. CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE. RoHS,REACH. Operational conditions. Operating temperature (T-T). -5 - 60 °C. Storage temperature (T-T). -25 - 65 °C. Storage relative humidity (H-H). 5 - 95%. Operating relative humidity (H-H). 5 - 95%. Operating altitude. 0 - 3000 m. Non-operating altitude. 0 - 15240 m. Weight & dimensions. Width. 56 mm. Depth. 44 mm. Height. 1791 mm. Weight. 6.84 kg. Packaging content. Cables included. Serial. Manual. Yes. Packaging data. Package weight. 6.47 kg. Package width. 107 mm. Package depth. 162 mm. Package height. 2000 mm. Technical details. Preferred mounting position. no preference. Halogen free. No. Packaging recycled materials. Recycled cardboard. Removable battery. Yes. Packaging without single use plastic. No. Take-back system. No. Sustainable packaging. No. Logistics data. Customs product code (TARIC). 8537109899. Country of origin. India. Total carbon footprint (kg of CO2e). 2676.8173692539. manual pdf. leaflet. manual pdf. manual pdf. manual pdf. manual pdf. EU Declaration of Conformity. EU Declaration of Conformity. Product Environmental Profile (PEP). Product End of Life Instructions
